SOY DEHULLER
Dehulling (or decortication) is the process of removing the seed hull, it can be applicable to more than just soybeans.
SG-4 soy dehuller is a part of SOY DEHULLER MILL INSTALLATION LSG-4 which
- grinds the product to a fraction of the required size
- removes the shells from the soybean core
Two pairs of rollers rotate towards each other and crush the soybeans.
On the lateral part of the rollers there is a ridge surface. Due to the different rotation speed, the soybean that fall into the gap between the rollers, crack and break up into several parts.

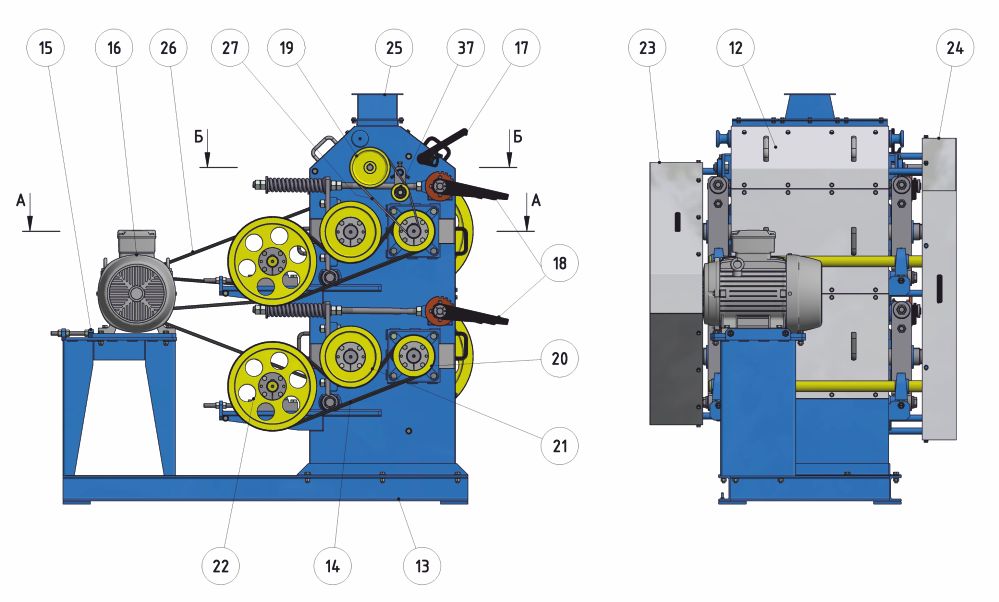

The dehuller SG-4 consists of the following units:
|

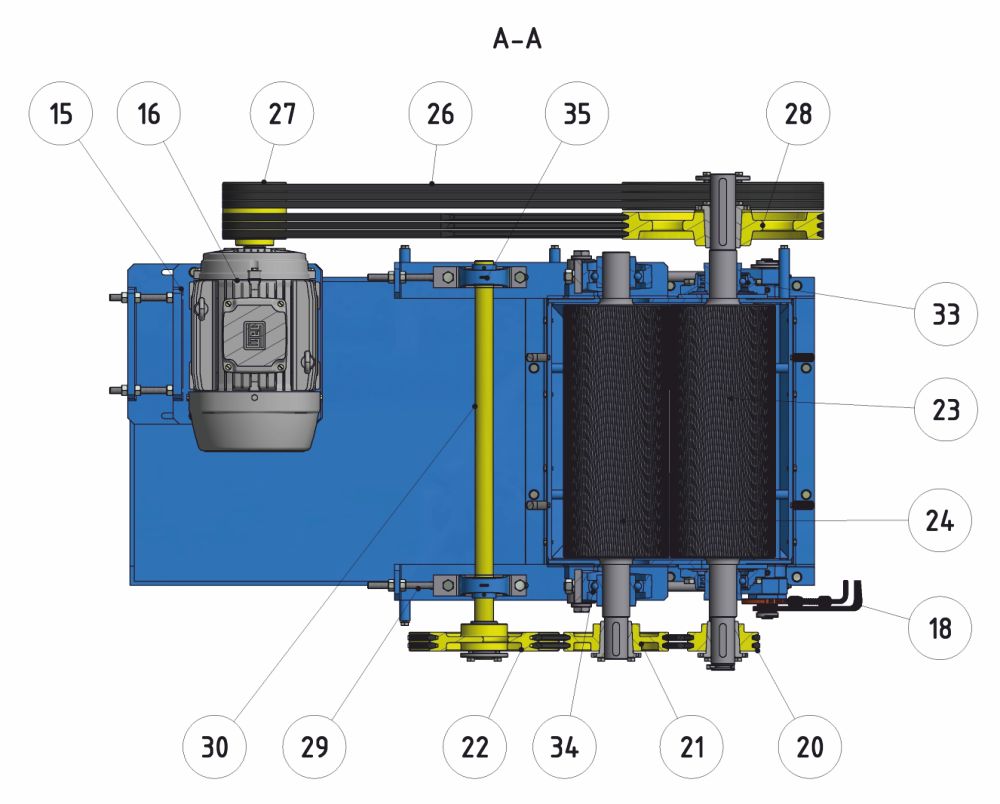

12 - BODY 13 - BASE 14 – HEX-SHAPED BELT 15 – TENSIONING DEVICE 16 – ELECTRIC MOTOR 17 – SLIDE HANDLE 18 – HANDLES FOR ROLLERS MOVEMENT 19 – PULLER OF FEED ROLLER |
20 – PULLER OF DRIVE ROLLER 21 – PULLER OF DRIVEN ROLLER 22 – INTERMEDIATE PULLEY 23 – SAFETY COVER 24 – SAFETY COVER 25 – INLET PIPE 26 – V-BELT DRIVE
|
|
27 – BELT OF FEED ROLLER 28 – DRIVEN PULLEY 29 – TENSIONING BOLT 30 – INTERMEDIATE SHAFT 31 – DRIVE ROLLER |
32 – DRIVEN ROLLER 33 – BEARING ASSEMBLY OF DRIVE ROLLER 34 – BEARING ASSEMBLY OF DRIVEN ROLLER 35 – BEARING ASSEMBLY OF INTERMEDIATE ROLLER
|
|

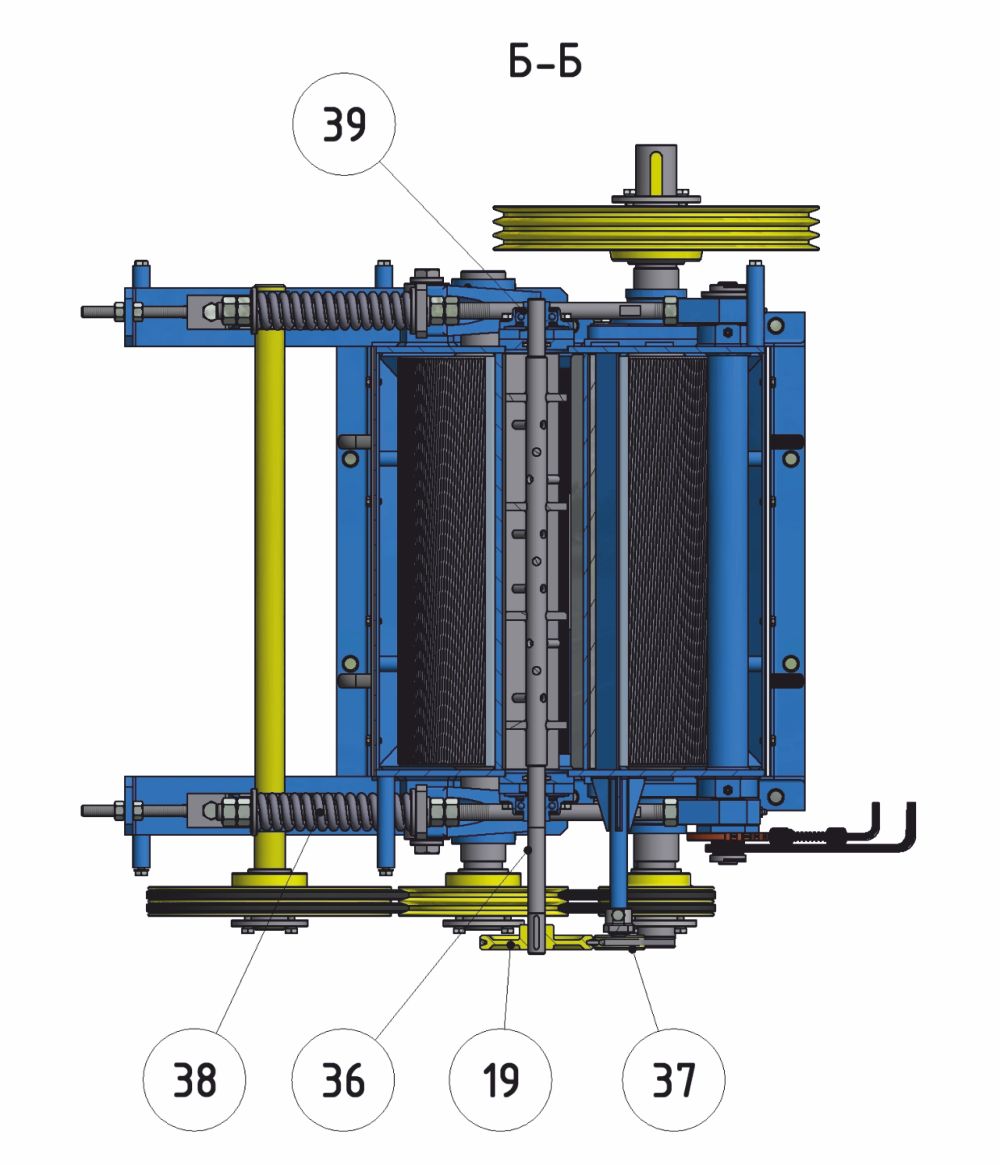

36 - BODY 37 - BASE |
38 – PULLEY OF DRIVE ROLLER 39 – PULLEY OF DRIVEN ROLLER |
Slide handle 17 controls the amount of the material in the work area.
Handlesforrollersmovement 18 are designed to adjust the roller gap. Size of the gap depends on the degree of grain grinding.
The horizontal position of the handle corresponds to the smallest gap between the rollers.
The mixture of soybean kernel and soybean shells obtained in the SG-4 is fed through the transport system to the air separator MA-4, which is an integral element of the SOY DEHULLER MILL INSTALLATION LSG-4.
